India's firsthydraulic radial forge

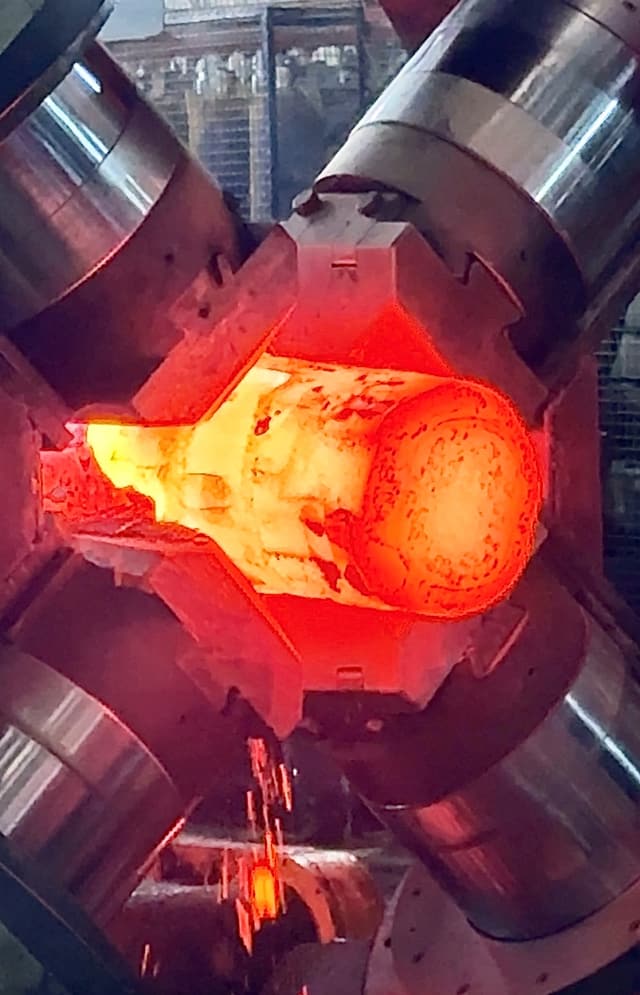

Four opposed dies work the bar at up to 200 strokes a minute, forging the steel through to the core rather than only at the surface.
- 30MT
- Single-piece forging
- 16,000mm
- Maximum length
- 200/min
- Radial forge strokes
- 1400°C
- Reheating furnaces

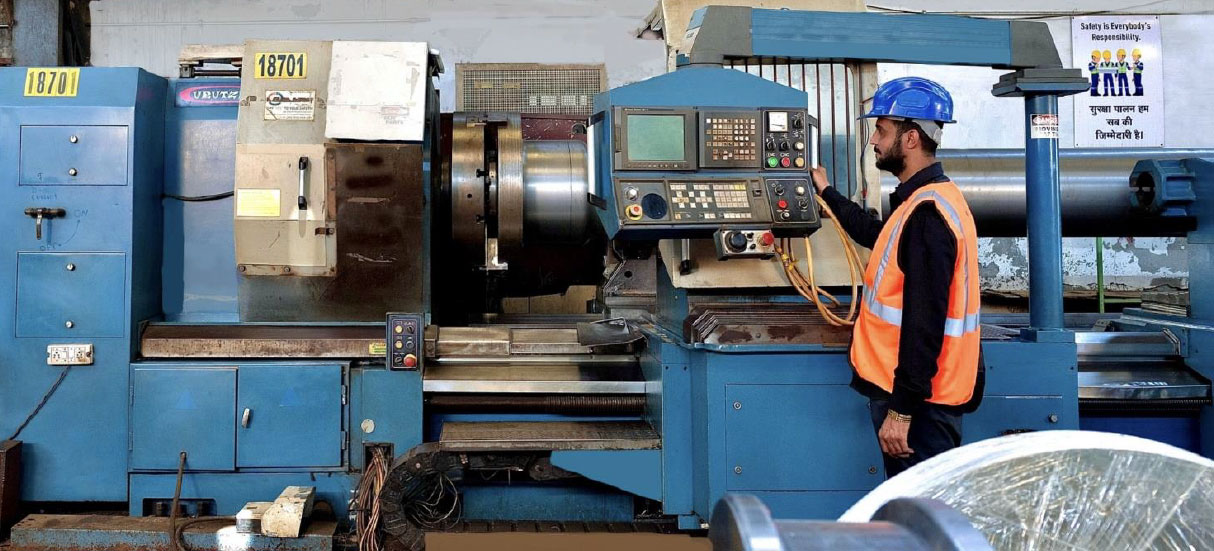

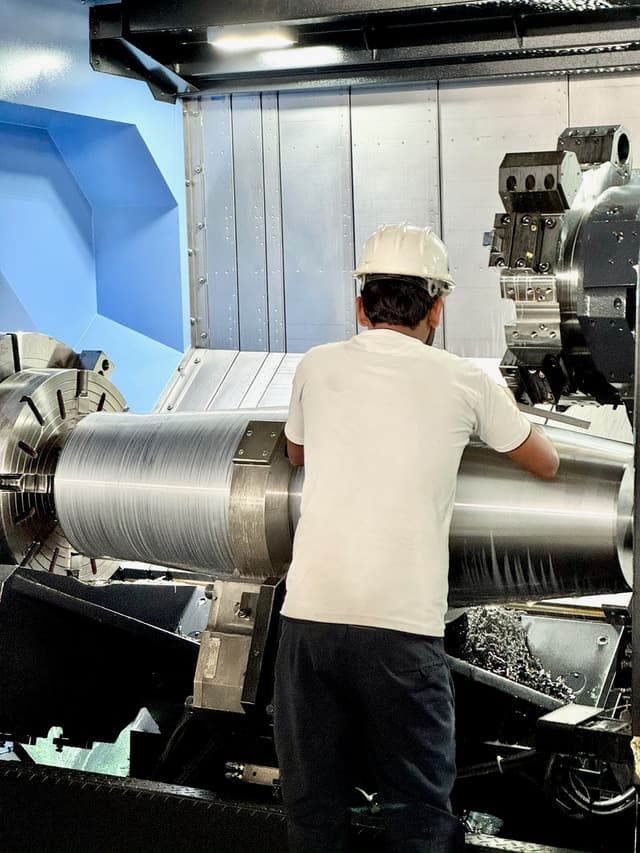

Forged Finish turned

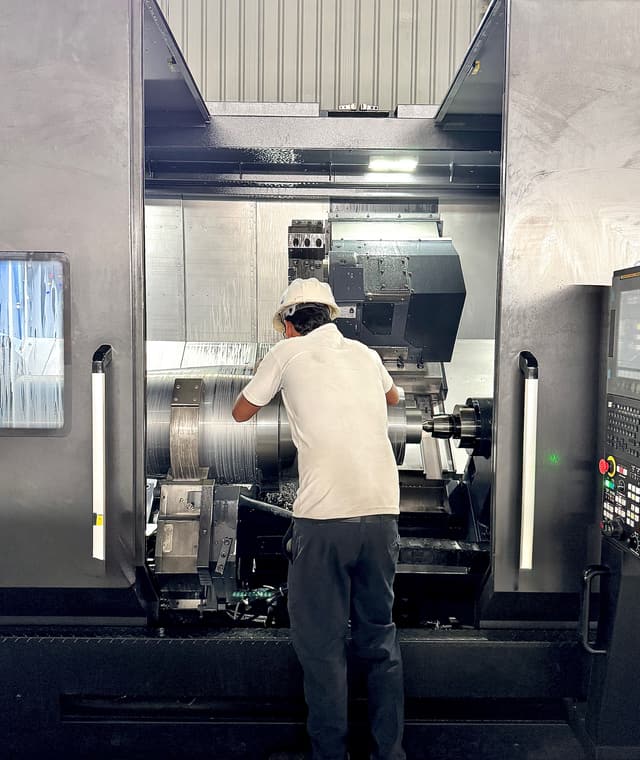

A forged bar, finish turned in our own machine shop.
Our products
Nine product families, each starting as liquid steel in our own melting shop. The figures shown are the maximum sizes we forge.
-

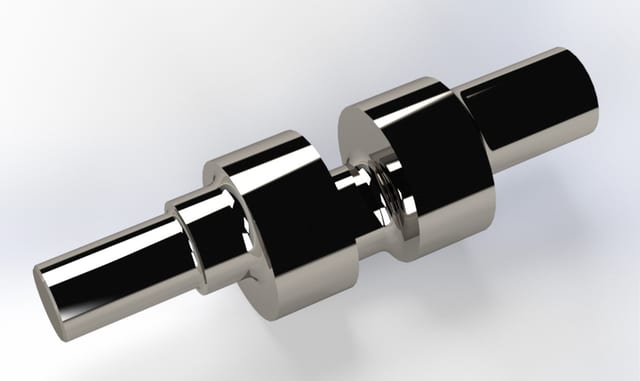

Round shafts / rolls / step shafts
- Max length
- 16,000 mm
- Max diameter
- Ø 2,000 mm
- Max weight
- 30 MT
- Radial forge

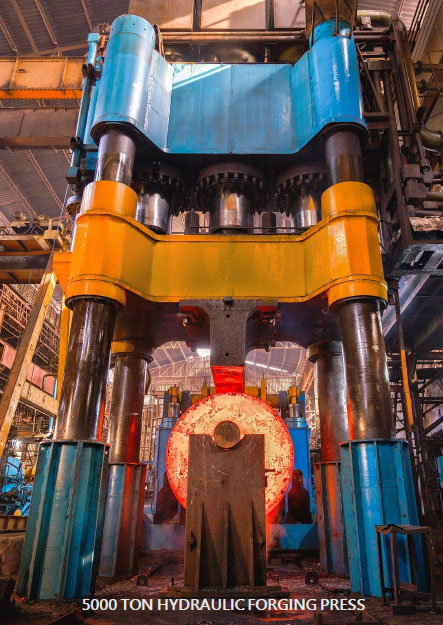

- 5,000 M.T. press
- 1,500 M.T. press
-
Crankshafts / eccentric shafts
- Max length
- 6,000 mm
- Max diameter
- Ø 1,500 mm
- Max weight
- 25 MT
- 5,000 M.T. press
- 1,500 M.T. press
-

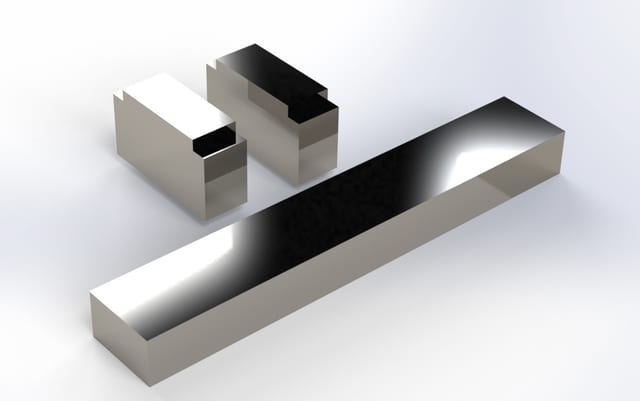

Square blocks / rectangular shafts
- Max length
- 12,000 mm
- Max width
- 2,500 mm
- Max weight
- 30 MT
- 5,000 M.T. press
- 1,500 M.T. press
-

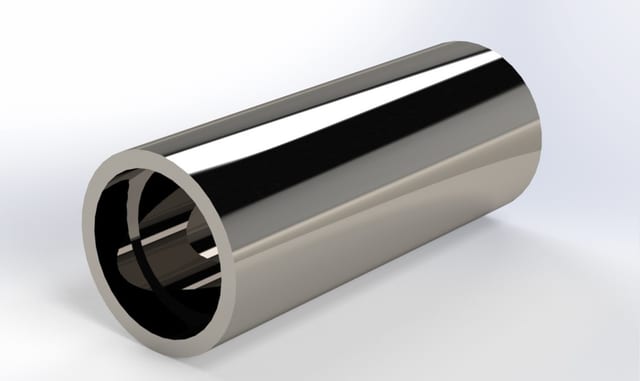

Pipes / hollow shafts
- Max length
- 10,000 mm
- Max O.D.
- Ø 1,500 mm
- Max I.D.
- Ø 1,000 mm
- Max weight
- 30 MT
- Radial forge
- 5,000 M.T. press
-
-

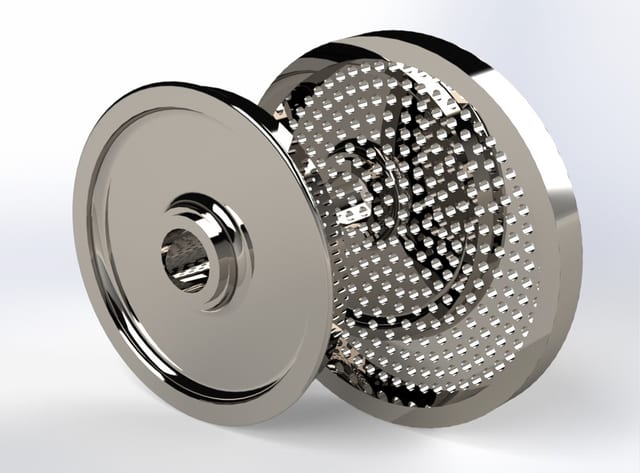

Tube sheets / crane wheels / gear blanks
- Max diameter
- Ø 3,000 mm
- Max weight
- 30 MT
- 5,000 M.T. press
-

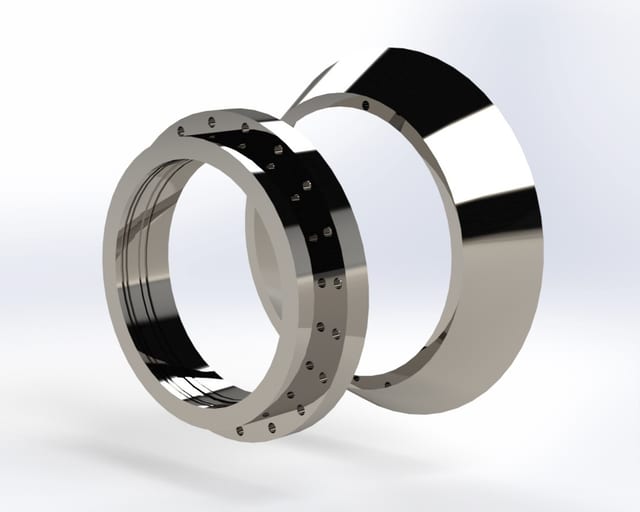

Non-standard flanges
- Max diameter
- Ø 3,000 mm
- Max weight
- 25 MT
- 5,000 M.T. press
-
Bushes / rotors / trunnions
- Max weight
- 25 MT
- 5,000 M.T. press
- 1,500 M.T. press
-

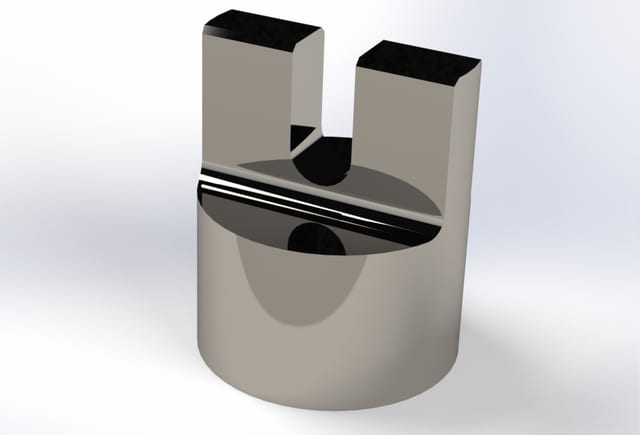

Couplers / hubs / spindles
- Max weight
- 25 MT
- 5,000 M.T. press
- 1,500 M.T. press
All families and maximum sizes as a list
- Round shafts / rolls / step shafts
- 16,000 mm, Ø 2,000 mm, 30 MT
- Crankshafts / eccentric shafts
- 6,000 mm, Ø 1,500 mm, 25 MT
- Square blocks / rectangular shafts
- 12,000 mm, 2,500 mm, 30 MT
- Pipes / hollow shafts
- 10,000 mm, Ø 1,500 mm, Ø 1,000 mm, 30 MT

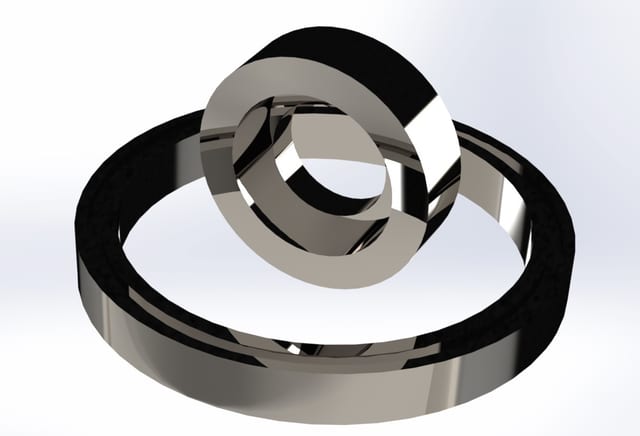

- Rings
- Ø 3,000 mm, 25 MT
- Tube sheets / crane wheels / gear blanks
- Ø 3,000 mm, 30 MT
- Non-standard flanges
- Ø 3,000 mm, 25 MT
- Bushes / rotors / trunnions
- 25 MT
- Couplers / hubs / spindles
- 25 MT
Can we forge it?
Enter a shape and a size to check it against our published maximum figures.

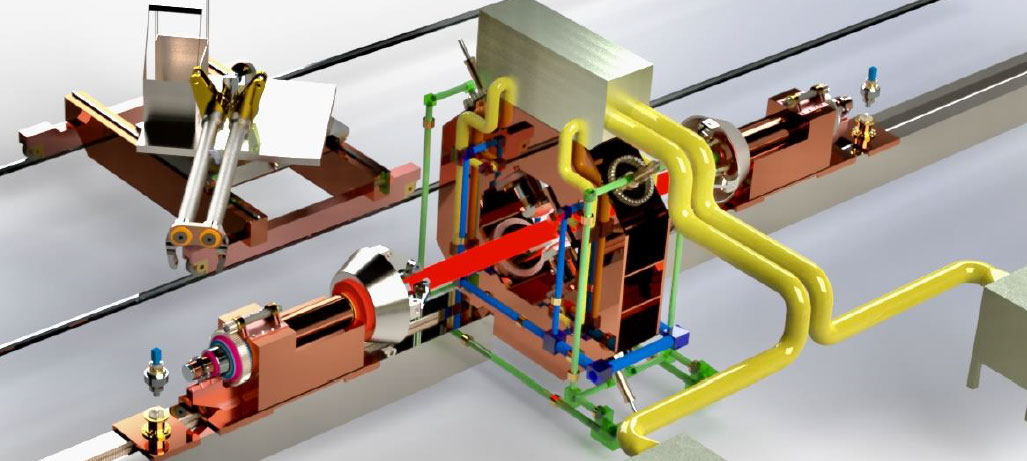

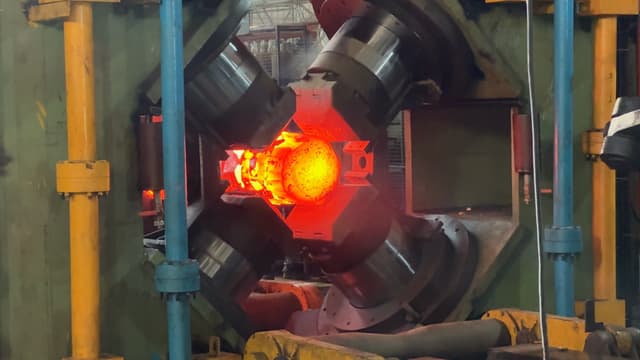

How the radial forge works
Four hydraulic cylinders arranged in an X close together on the bar while two manipulators rotate and feed it.

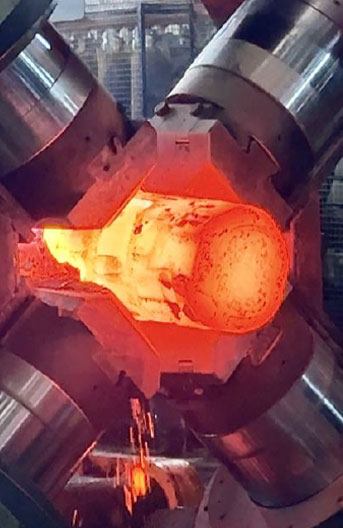

Cross-section. The bar is turned between strokes.
Rated at up to 200 strokes a minute. Drag the control to see the effect.
-

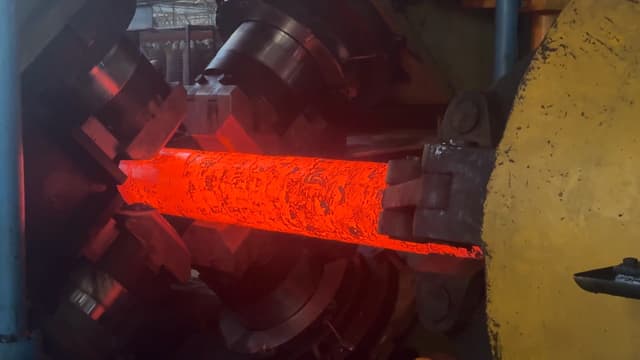

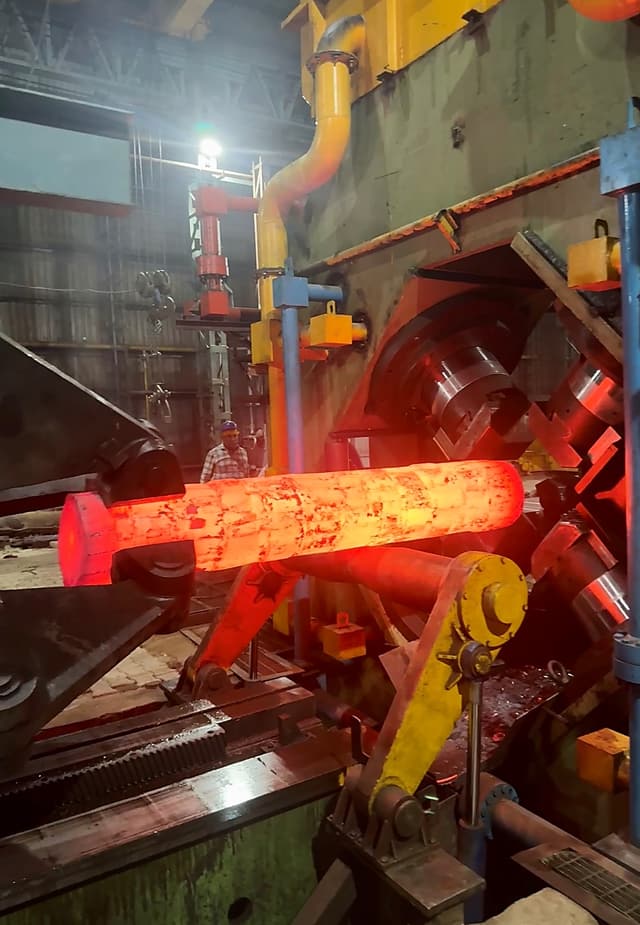

A shaft under the radial forge. -

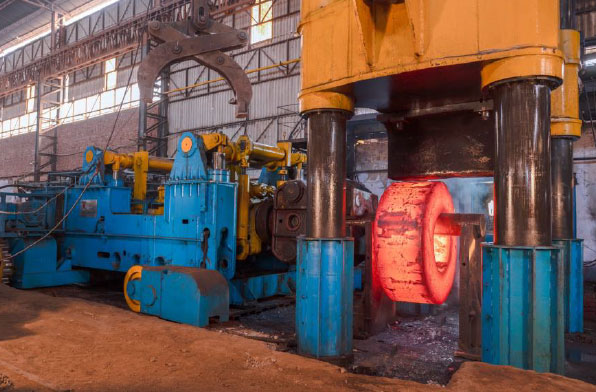

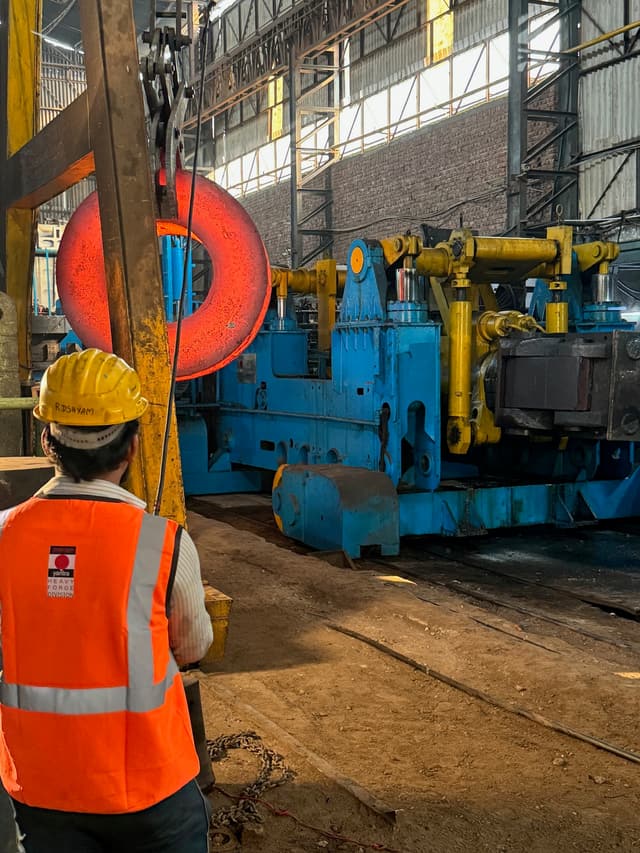

A forged ring lifted from the press. -

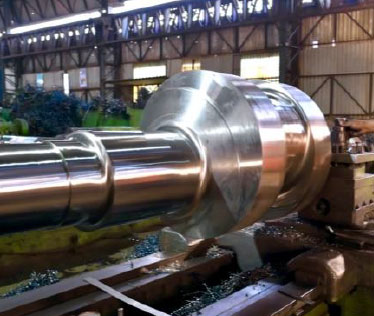

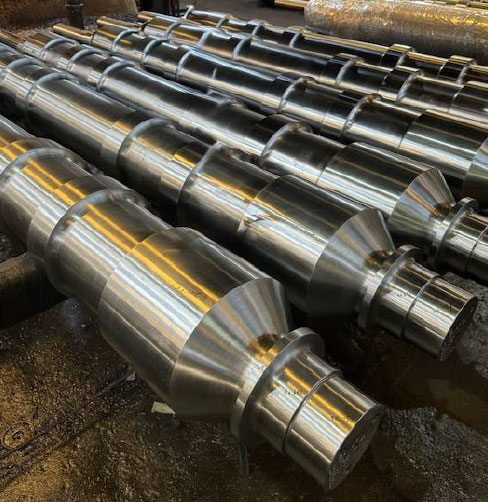

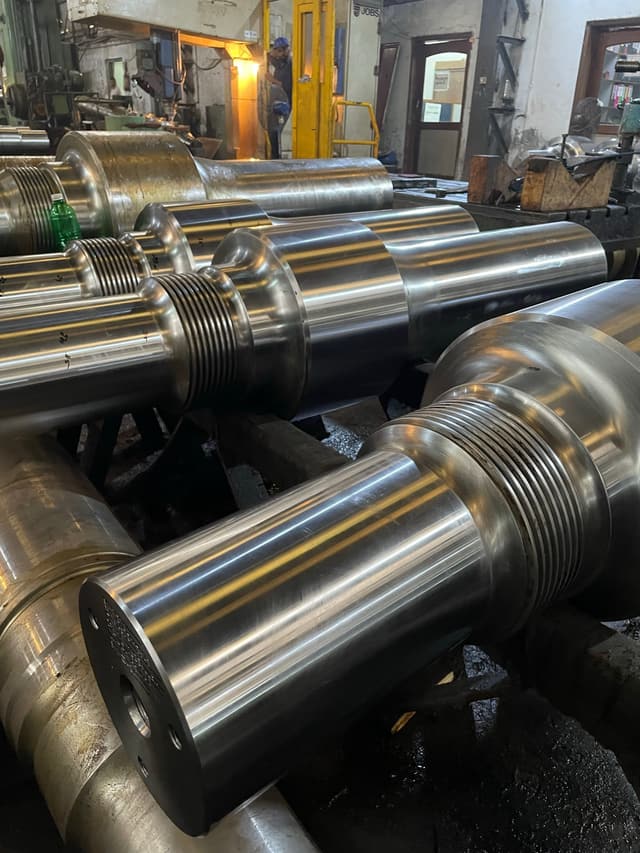

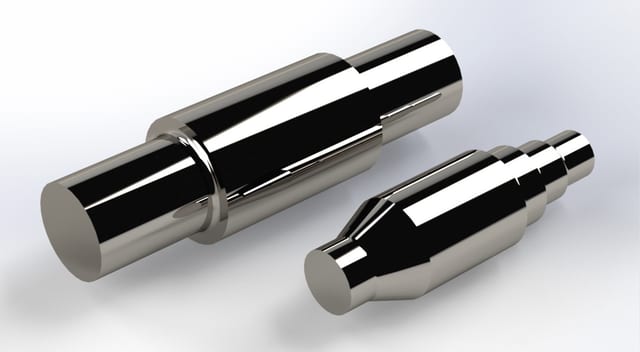

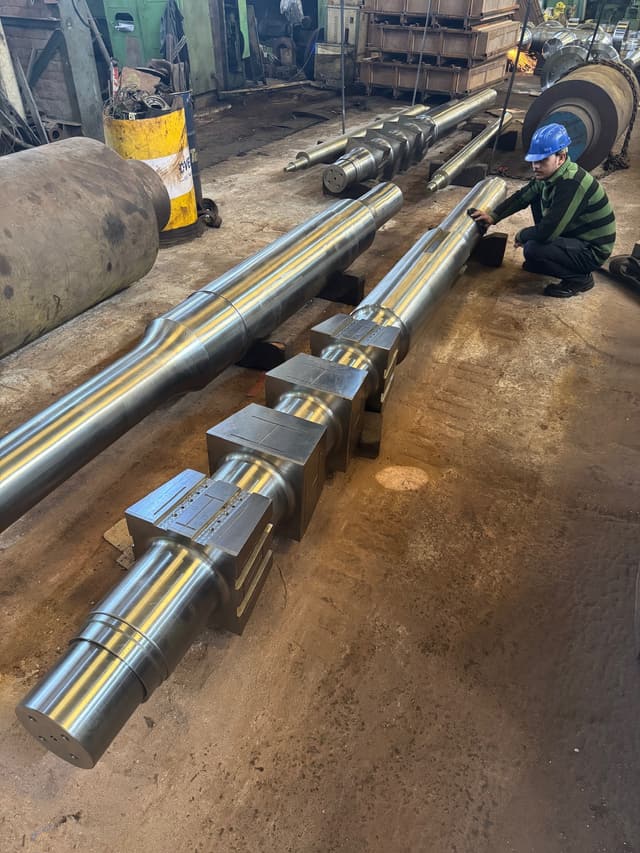

A stepped shaft and a plain shaft, both finish turned.

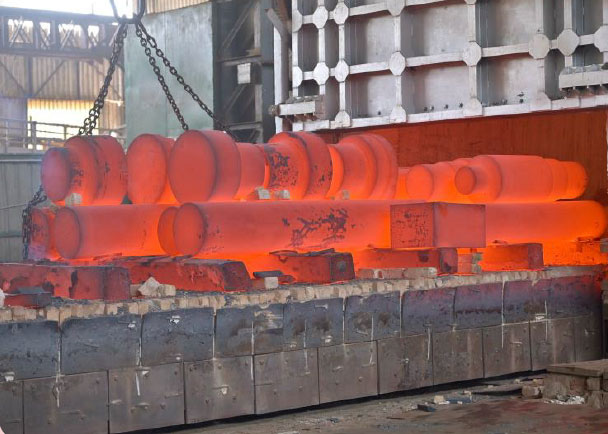

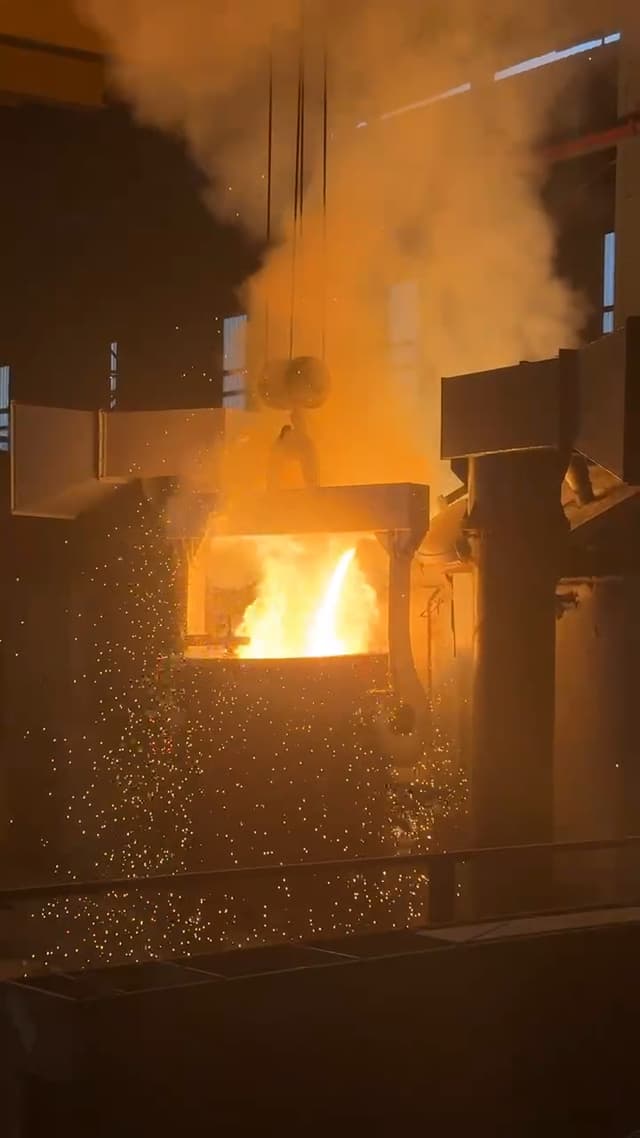

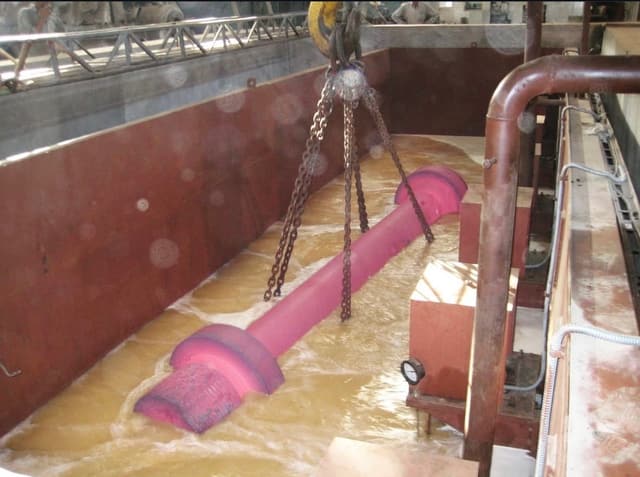

From melting to dispatch on one site

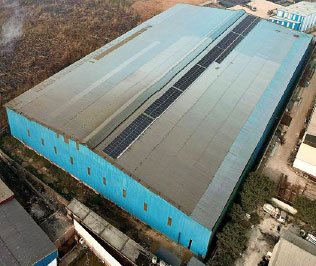

Every part is cast, forged, heat treated and machined at our Pilkhuwa works, without leaving the site between stages.
Left to right is the order of production; the rule beneath shows the metal cooling.
See the full processIndustries we serve
Eleven sectors, all supplied from the same plant.
- Cement
- Mining Crusher shaft
- Shipping Rudder shaft
- Steel Steel mill shafts
- Material handling
- Oil and gas
- Thermal power

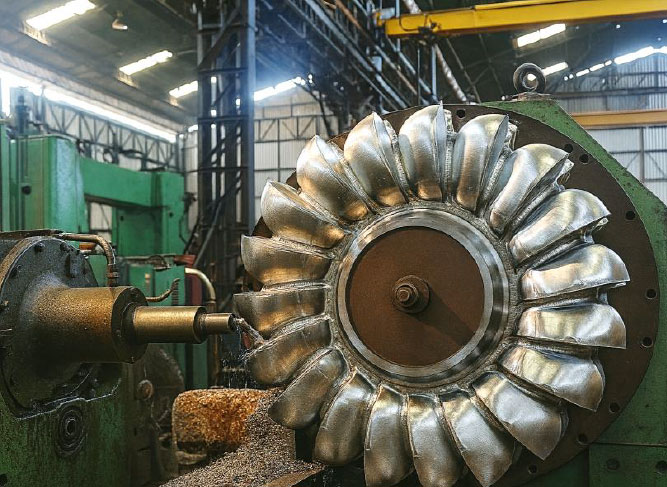

- Hydro power Pelton turbine runner and Hydro turbine shaft
- Wind power
- Defence
- Railways The radial forge was installed for axles: through-forged along the full length, as single, double or multiple axles from one heat.
The group also supplies the automotive, engineering, material processing, stone crusher and sugar sectors.

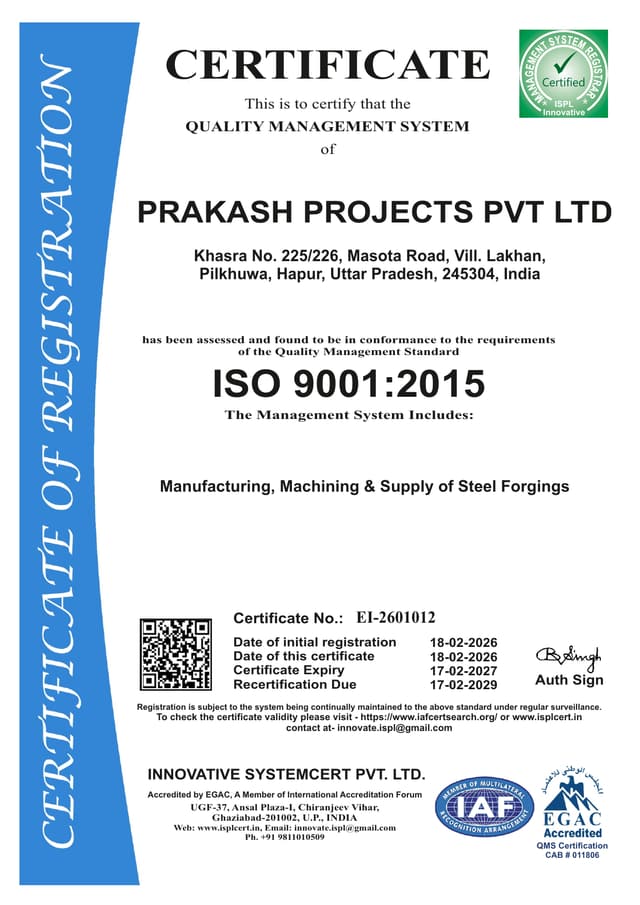

Certifications and approvals
Customer recognition
-
Terex
Best supplier award
MP India supplier meet, for development support
Awarded to Prakash Yantra Udyog
-
L&T
Certificate of appreciation
Boiler factory, Hazira
Awarded to Prakash Yantra Udyog
-
Metso
Appreciation for support and services
11 August 2025
Awarded to Prakash Yantra Udyog
-
Industry Outlook
Top 10 forging companies 2025
Cover story, December 2025
Listed for Prakash Yantra Udyog
Send us your drawing
Tell us the shape, grade and quantity, and you will receive a reference number immediately.
